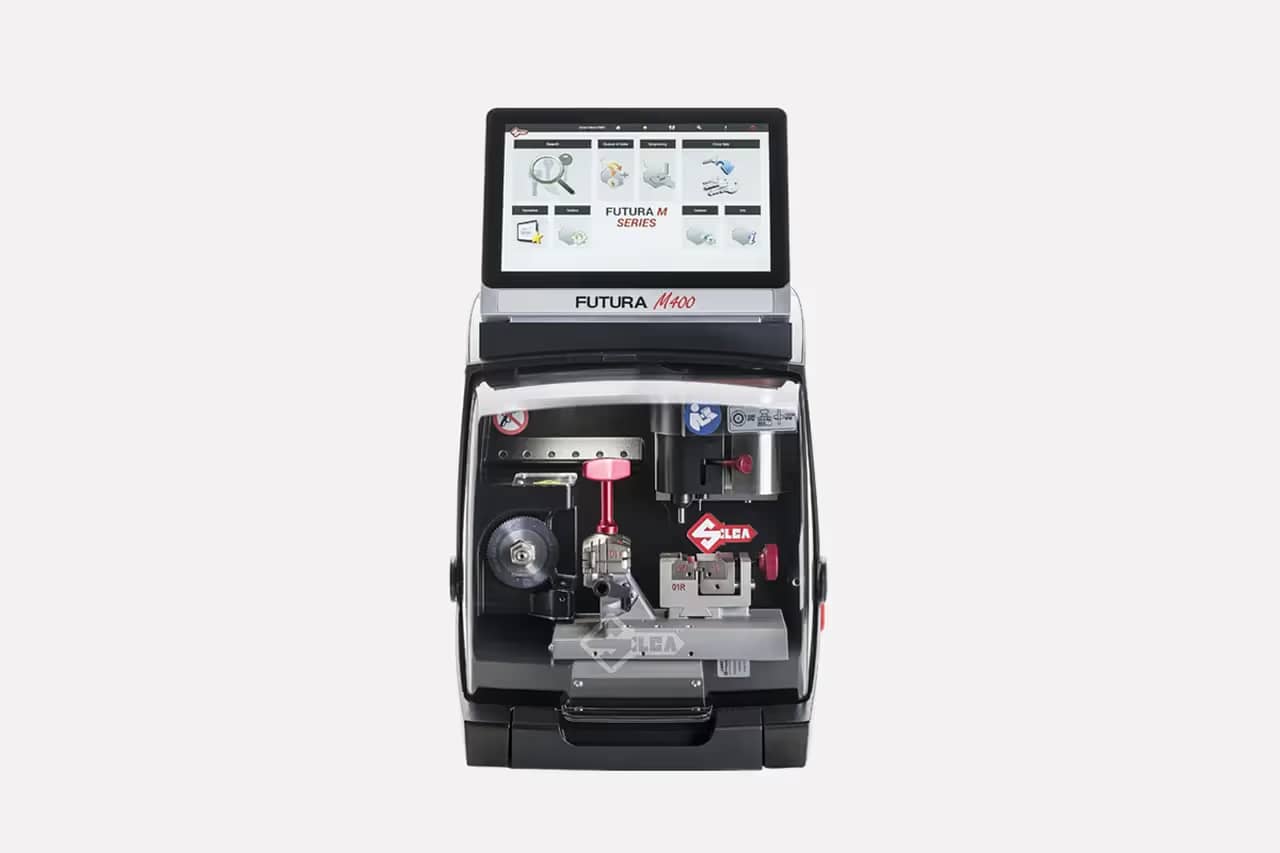

FUTURA M400

Product Details

Features

FLAT | CRUCIFORM KEY STATION

- decoding via optical reader
- copy by code and by original
- four-sided rotating clamp
- long life widia cutter
- gauge for precise key installation

LASER | DIMPLE CUTTING STATION

- decoding by electrical contact
- easy to install clamp
- interchangeable jaws
- automatic calibration of decoder and cutting station
- pull out tracer point

Technical Data

POWER SUPPLY: Machine: 24V d.c.- 5,5 Amp. - 130W;
POWER PACK: 90/264V a.c. - 50/60Hz - 220W

CUTTER MOTOR - Flat Cuts : 24V d.c.
AXES RUN: X axis30 mm |Y axis: 50 mm | Z axis: 27 mm
MOVEMENTS: on 3 axes (with special bushes) driven by step motors on rectified roller guides.

FLAT CUTS
PRISMATIC CUTTER: U01W, Hard Meeting with Coating
CLAMP: 01V | Removable | Four Universal Sides holding flat, vehicle and cruciform keys

DIMPLE CUTS
CUTTER: 01D, in HSS Super Rapid Steel
CLAMP: 01R | Removable | Provided withinterchangeable jaws

LASER CUTS
CUTTER: 01LW, in Carbide AICrN Coated
CLAMP: 01R | Removable | Provided withinterchangeable jaws

DIMENTIONS: width: 318 mm, depth: 413 mm, height with tablet and stand: 530 mm | with display closed : 365 mm |
WEIGHT: 20 kg

Functionality

All-in-one, electronic key cutting machine.Silca's iconic key cutting machine is now faster, quieter and even easier to use. Thanks to the easy-to-use yet powerful software, and ability to cut all types of keys including protected systems and customised cylinders, the Futura M Series is the perfect all-in-one solution to deliver a professional key-cutting service. Futura M features a double cutting station meaning flat, cruciform, laser and dimple keys, both residential and automotive, can all be cut USING a single machine
